Have you ever cooked a meal for one? Easy, right? Now, imagine cooking for a squad, a platoon, a company, or even a battalion! As the number of plates increases, the quality of the meal often decreases. This shows that being a great cook doesn’t make one a chef. The same principle applies to manufacturing. Trained engineers excel at breaking down problems and delivering textbook solutions. However, mastering manufacturing is also essential to meet large-scale product demand. Just like chefs, engineers can specialize, but great design engineers should also be competent in manufacturing, and vice versa. The best results are achieved when design and manufacturing engineers collaborate in a system of checks and balances, leading to the best-designed, manufacturable products.
From the outset of development, companies should consider the Serviceable Obtainable Market (SOM) and customer willingness to pay. These constraints will help shape the final product. Design engineers should work closely with manufacturing engineers to control costs and ensure adequate production to meet market demand. Creating a new product that addresses an unmet need is a significant achievement, but failing to meet demand can give competitors an opportunity to erode a competitive edge. Engineering and manufacturing collaboration is essential to delivering scalable designs and maintaining market leadership.
Understanding DFMA
Design for Manufacturability and Assembly (DFMA) is crucial to avoid excessive costs, long lead times, poor quality, and other issues arising from lack of manufacturing and planning experience. DFMA combines the practices of Design for Manufacturability (DFM) and Design for Assembly (DFA). Implementing these principles can significantly improve production efficiency, reduce costs, and enhance product quality. By integrating DFM and DFA early in the design process, faster product introduction and better overall performance can be achieved.
DFM focuses on designing products in a way that is easy and cost-effective to manufacture. DFM results in faster time to production, higher quality, and lower Cost of Goods Manufactured (COGM). Simplifying designs and using standard or off-the-shelf parts makes manufacturing more efficient and reduces errors. DFM is achieved through several methods, including involving manufacturing experts early in the design process, using NIST manufacturing standards to analyze designs for manufacturability, building and testing prototypes to identify and resolve manufacturing challenges, and regularly reviewing the design for manufacturing.
DFA focuses on making parts easy to assemble correctly. This can include features like location and alignment guides and plug-and-socket-type connections to simplify the assembly process. DFA leads to reduced assembly time, lower labor costs, improved quality, and cost savings, as simplified assembly steps make production faster and less susceptible to errors. DFA integrates assembly principles from the start of the design process, using Boothroyd Dewhurst DFMA methodology to evaluate assembly feasibility and building prototypes to test assembly procedures.
Basics of DFMA: Key Principles

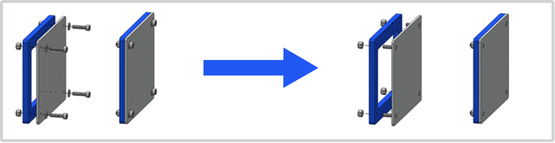

1. Simplicity: Use as few parts as possible to make assembly easier and cheaper.
Reducing the number of parts decreases material costs and minimizes assembly steps, leading to faster production times. Additionally, simpler designs are easier to maintain and reduce the likelihood of defects.

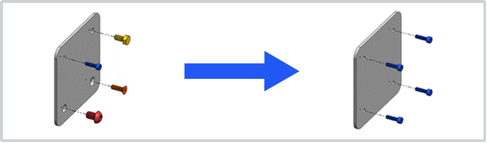

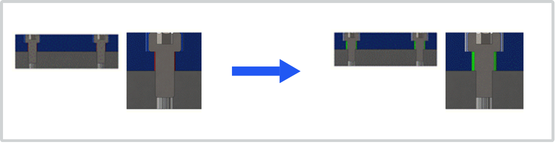

2. Standardization: Use common, easily available parts and materials
(MatWeb material database).
This reduces the need for custom manufacturing, making sourcing and replacement more efficient. Standardized parts also improve consistency in quality and compatibility across different production runs.

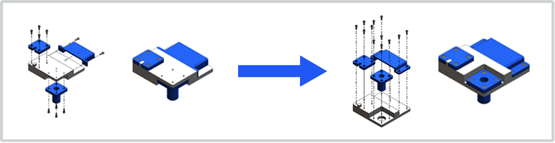

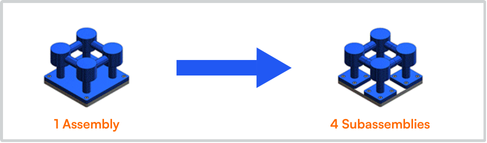

3. Modularity: Create parts and subassemblies that can be easily combined or swapped out.
Modular designs enhance flexibility in manufacturing and allow for quicker updates or customization. They also simplify repairs and replacements, extending the product’s lifespan.

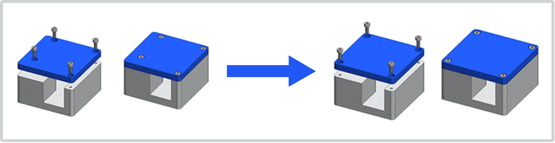

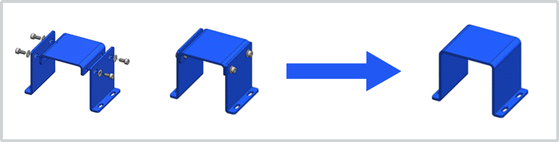

4. Integration: Design snap-fits and fasteners directly into parts.
This eliminates the need for separate fasteners, reducing assembly time and material costs. Integrated features can also improve the structural integrity of the product while making disassembly easier.
5. Uniformity: Use symmetrical designs for easier alignment.
Symmetric parts minimize the chances of incorrect assembly and reduce the need for complex orientation instructions. They also streamline automated manufacturing and handling processes.

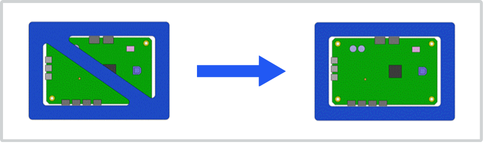

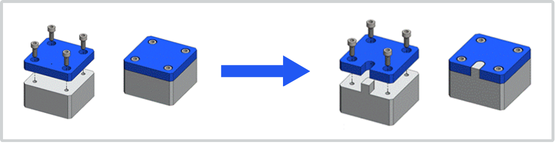

6. Error-Proofing: Design features that prevent incorrect assembly (Poka-Yoke).
This includes adding guides, color-coded connections, or unique shapes that fit only in the correct orientation. Error-proofing reduces defects and ensures a smoother assembly process.
7. Orientation: Design parts so they don’t need to be rotated or repositioned during assembly.
Minimizing the number of handling steps speeds up production and reduces the risk of assembly errors. This is particularly beneficial in automated manufacturing environments.
8. Accessibility: Make parts easy to access for assembly and disassembly.
Proper placement of components ensures efficient production and maintenance. Accessibility considerations also improve serviceability, making repairs and inspections easier.

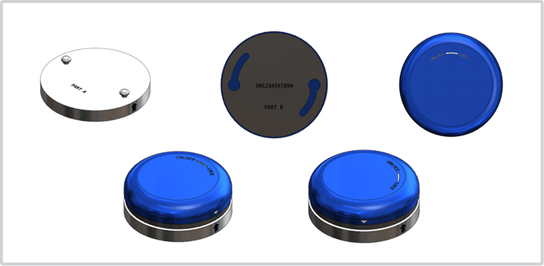

9. Indication: Use visual markings to guide assembly and reduce errors.
Features such as labels, arrows, or alignment indicators help workers quickly and accurately assemble parts. Clear indications contribute to consistent quality in large-scale production.
10. Tolerancing: Design as appropriate to avoid waste due to manufacturing variations and ensure parts fit together smoothly.
Proper tolerancing reduces material waste and ensures compatibility between parts, preventing costly rework. It also accommodates minor variations in manufacturing without affecting product performance.

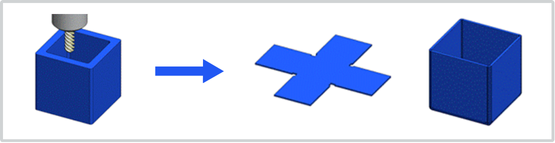

11. Optimization: Design parts to fit the chosen manufacturing method, such as machining, sheet metal, thermoforming, or injection molding.
Matching designs to the production process enhances efficiency, lowers costs, and improves product quality. Understanding the limitations and strengths of each method ensures the best results.
12. Selection: Choose materials that are easy to obtain, affordable, and perform well.
Examples include aluminum, stainless steel, and polypropylene (Harvard Business Review on manufacturing strategy). Material selection impacts durability, cost, and manufacturability, so choosing the right material balances performance and efficiency.
End-to-End Design and Development with Gener8
At Gener8, our team of talented design engineers, manufacturing experts, and assembly technicians work in harmony to evaluate requirements, craft detailed development plans, and bring innovative and manufacturable products to life. Together, they strive to meet the highest standards of quality and performance.
For businesses and entrepreneurs needing more resources and wishing to meet market demand, proper DFMA can be the deciding factor of success. By following these principles, more efficient, cost-effective, and high-quality production processes can be achieved.
Partnering with Gener8 provides a way of squaring this circle. With full-spectrum engineering capabilities and a specialty in instrument design and manufacturing, we can handle every aspect of the process, from design to development and production.
We understand though, that end-to-end solutions aren’t always what’s needed. That’s why we’re also able to plug gaps in our clients’ processes. We offer comprehensive support in generating product requirements, developing products, and manufacturing.
Ready to bring your vision to life? Partner with Gener8 and turn your innovative ideas into reality with our full-service, end-to-end engineering expertise.
